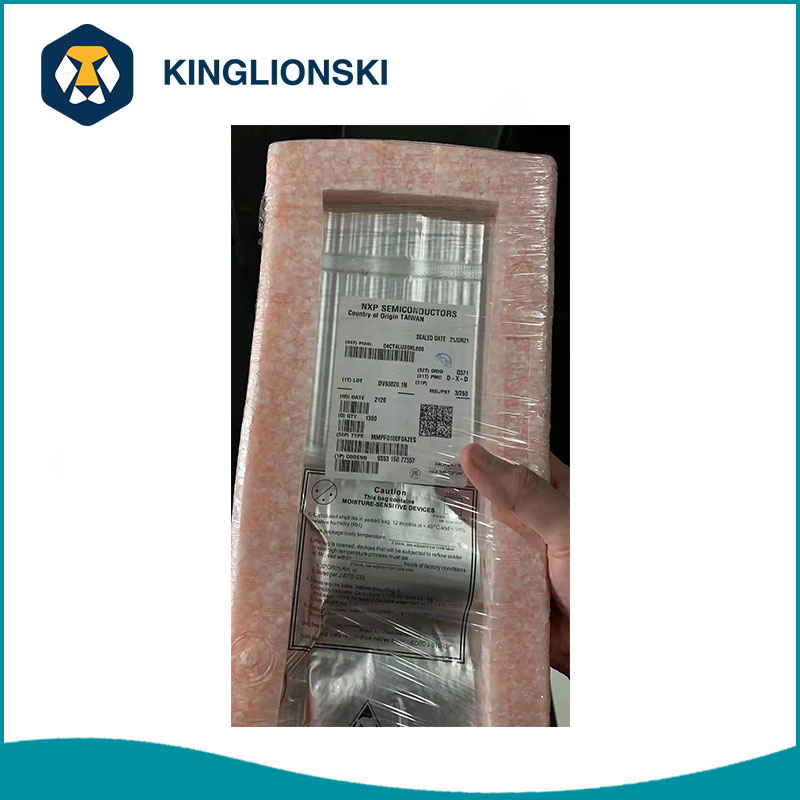

MKL17Z128VFM4 Electronic Components

Product Introduction

The MKL17Z128VFM4 Electronic Components is optimized for cost-sensitive and batterypowered applications requiring low-power general-purpose connectivity. The product offers:Embedded ROM with boot loader for flexible program upgrade

High accuracy internal voltage and clock referenceFlexIO to support any standard and customized serial peripheral emulationDown to 54uA/MHz in very low power run mode and 1.96uA in deep sleep mode (RAM + RTC retained)

Product Peripherals

①One UART module supporting ISO7816, operating up to 1.5 Mbit/s

②Two low-power UART modules supporting asynchronous operation in low-power modes

③Two I2C modules and I2C0 supporting up to 1 Mbit/s

④Two 16-bit SPI modules supporting up to 24 Mbit/s

⑤One FlexIO module supporting emulation of additional UART, IrDA, SPI, I2C, I2S, PWM and other serial modules, etc.

⑥One serial audio interface I2S

⑦One 16-bit 818 ksps ADC module with high accuracy internal voltage reference (Vref) and up to 16 channels

⑧High-speed analog comparator containing a 6-bit DAC for programmable reference input

⑨One 12-bit DAC

⑩1.2 V internal voltage reference

Product Packages

64 LQFP 10mm x 10mm, 0.5mm pitch, 1.6mm thickness

64 MAPBGA 5mm x 5mm, 0.5mm pitch, 1.23mm thickness

48 QFN 7mm x 7mm, 0.5mm pitch, 0.65mm thickness

32 QFN 5mm x 5mm, 0.5mm pitch, 0.65mm thickness

36 WLCSP 2.8mm x 2.7mm, 0.4mm pitch, 0.6mm thickness
