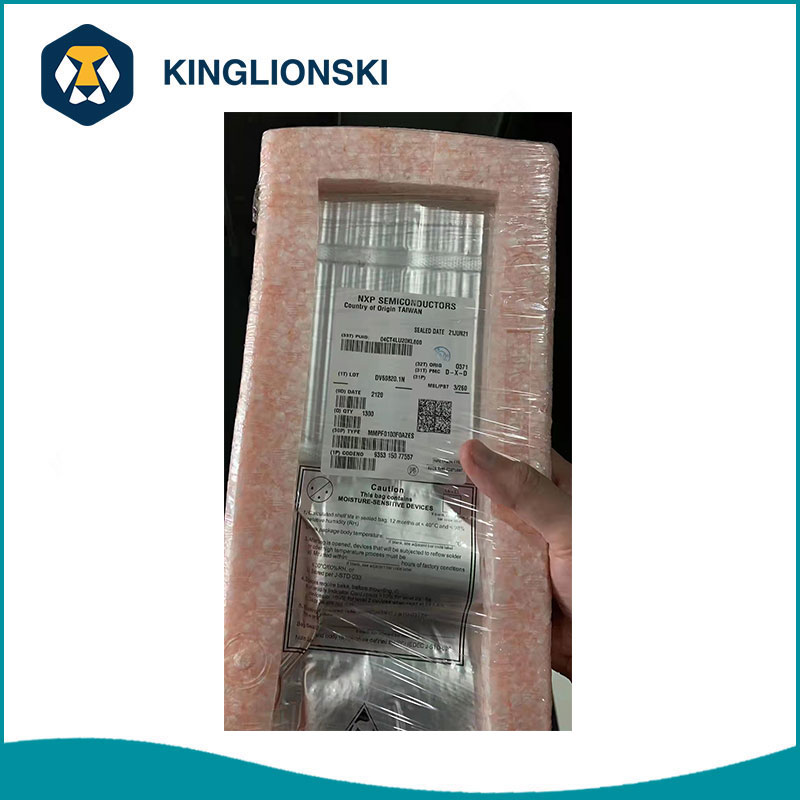

FS32K144HFT0VLHR NXP Electronic Components

FS32K144HFT0VLHR belongs to ARM microcontroller MCU of NXP electronic components.The junction to ambient thermal resistance is an industry standard value that provides a quick and easy estimation of thermal performance. Unfortunately, there are two values in common usage: the value determined on a single layer board and the value obtained on a board with two planes.

Junction temperature is a function of die size, on-chip power dissipation, package thermal resistance, mounting side (board) temperature, ambient temperature, air flow, power dissipation or other components on the board, and board thermal resistance.For packages such as the PBGA, these values can be different by a factor of two.

Which value is closer to the application depends on the power dissipated by other components on the board. The value obtained on a single layer board is appropriate for the tightly packed printed circuit board. The value obtained on the board with the internal planes is usually appropriate if the board has low power dissipation and the components are well separated.

FS32K144HFT0VLHR NXP Electronic Components Features

Clock interfaces

– 4 - 40 MHz fast external oscillator (SOSC) with up to 50 MHz DC external square input clock in external clock mode

– 48 MHz Fast Internal RC oscillator (FIRC)

Operating characteristics

– Voltage range: 2.7 V to 5.5 V

– Ambient temperature range: -40 °C to 105 °C for HSRUN mode, -40 °C to 150 °C for RUN mode

Debug functionality

– Serial Wire JTAG Debug Port (SWJ-DP) combines

– Debug Watchpoint and Trace (DWT)
